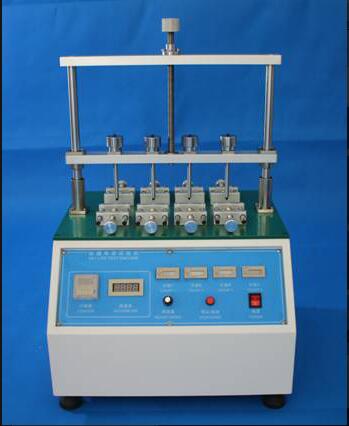

SL-T112 5~60/min (Knob Adjustable, LCD display) Button Press Test Machine
Product description
Button Presses tester for mobile phones, computers, electronic dictionaries, Bluetooth headphones, car players, remote control button, vehicle anti-theft device, fax key, MP5, MP4, MP3, key switch, touch switch, film buttons, rubber keys, silicone keys, such as various types of buttons for life test. The machine is placed in the corresponding station of the test position, the key test rod in a certain test load, speed, travel, the number of times to simulate the use of the product Life test.
Technical parameter
| Test Station | 4 (work at the same time) |
| Load Weight | 50, 100, 200, 300, 500g each four (optional) |
| Test count counter | 0~99999999 times (can be preset, LCD display) |
| Test guide The number of counters | 0~999999 times (four-position guide automatic counting, disconnect automatic stop count) |
| Test speed | 5~60/min (knob adjustable, LCD display) |
| Test Itinerary | 0~60mm (Manual adjustable) |
| The test fixture conventional clamping range | 60x70mm (manual adjustable) |
| Adjustable range of test rod fixing device | 0~180mm |
| Overall dimension (LxWxH) | 500x400x550mm |
| Machine Weight | 25kg |
| Working power | AC220v, 50HZ |
Button Press Test Machine with Knob Adjustable.pdf...
What is a button press machine?
Basically, the terms "button press" and "button machine" (as well as "button maker" and many others) refer to the same product: a loadable, die-driven device that allows for quick, easy, and efficient production of a wide range of different types of buttons like pinbacks, fabric buttons, and photo buttons.
